HUD Head Up Display Speed Alarm system for Windshield Speed display For Cars
HUD Head Up Display Speed Alarm system for Windshield Speed display For Cars
No need to look down at the clock

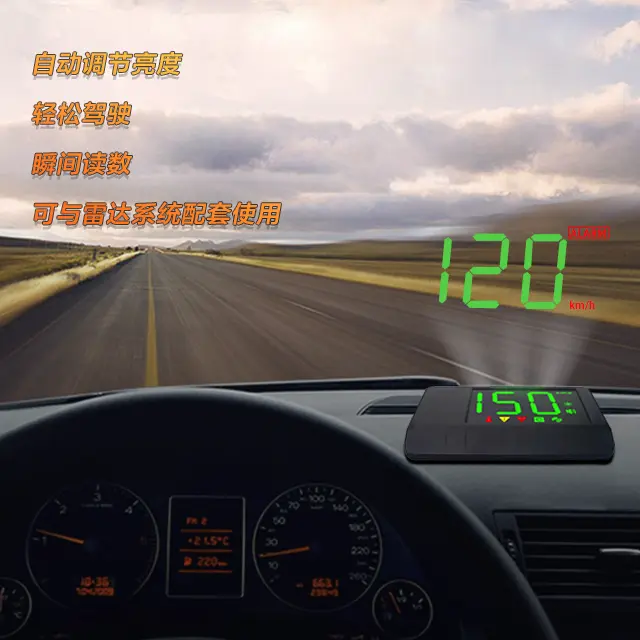

Display speed on the windshield
Speeding warning
Automatically turn on and off with the engine

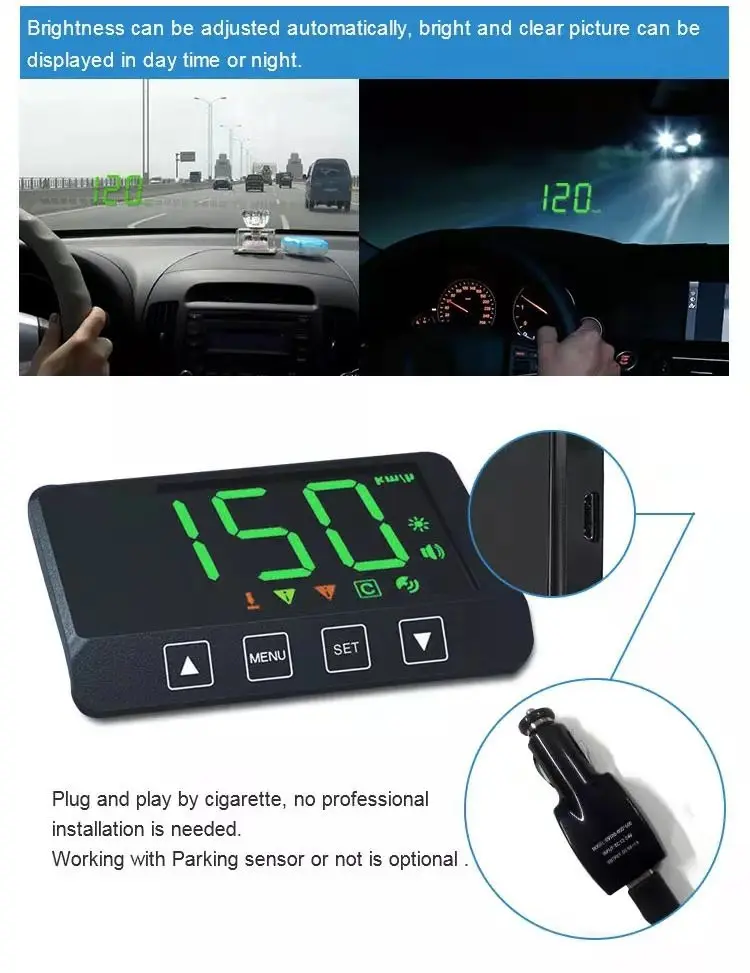

Automatically adjust brightness according to the environment
Product Description HUD Speed Display Driver Glass For Car
HUD is a speed display device on the car windshield, thanks to this device, drivers do not need to look down at the clock on the car.
This is a speed display device on the windshield applied to military aircraft, and now it is widely used in the automotive industry. The information display unit on the steering wheel also has a speeding warning feature by intelligent handling.
HUDhelps increase driving safety.
Technical Parameter:
| Working voltage range | 9V~16V |
| Rated operating current | ≤1A |
| Working temperature | 30℃~85℃(TFT Screen working temperature) |
| Projection display brightness | Daytime=500 cd/m Nighttime(max)=200 cs/m² |
| Projection display transmittance | 70% |
| Projection distance | 1.8m |
| Projection display resolution | 320*240 |
| Screen contrast | 400:1 |
| Projection display pixelx size | About 0.2*0.5mm |
| Depth of imaging unit | 8bit |
| Projection display aspect ratio | 3:4 |
| TFT screen size | 2.8inch |
| Optical magnification | 2.5 times |
| Eye movable area | 130*70mm |
| Projection display size | About 9 inch |
| Device Size | 215*200*175mm |
| Equipment life | 2000hours(for LED) |
| Weight | 1.2kgs |
| Projection display in/off time | Less than 5s |
| Automayic brightness adjustment | Support, light sensor inside |
Main Feature:

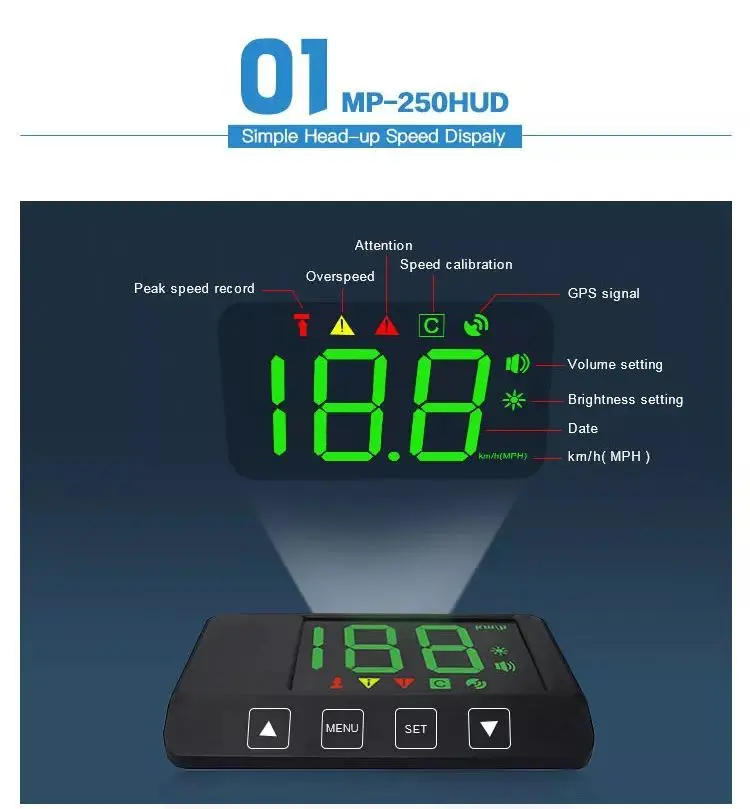

When driving,system displays the “RUNNING SPEED’,”ATTENTION”,“OVERSPEED” information on the windshield,avoiding hidden perilof,lowering your head to look the speedometer when driving on high speed.
Product Character:
1.Speed by GPS satellites,power by cigarette,easy installation.
2.Touch key,no abrasion.
3.Adjustable brightness.
4.Working with parking sensor is optional.
Minpn is a leading manufacturing and engineering company that markets complete automotive safety driving solutions. Our mission is to make the roads a safer place. We aim to protect and focus on improving drivers’ safety with the highest quality and advanced vehicle safety solutions. We adopt and utilize the most innovative Parking Assist System (also known as the Advanced Parking Guidance) to reduce pressure for drivers.
